ASUS WS C422 SAGE/10 10G Mainboard Sockel 2066
626,00 €*
% 699,00 €* (10.44% gespart)Sofort verfügbar, Lieferzeit 3-4 Wochen
Produktnummer:
A0000130
Produktinformationen "ASUS WS C422 SAGE/10 10G Mainboard Sockel 2066"

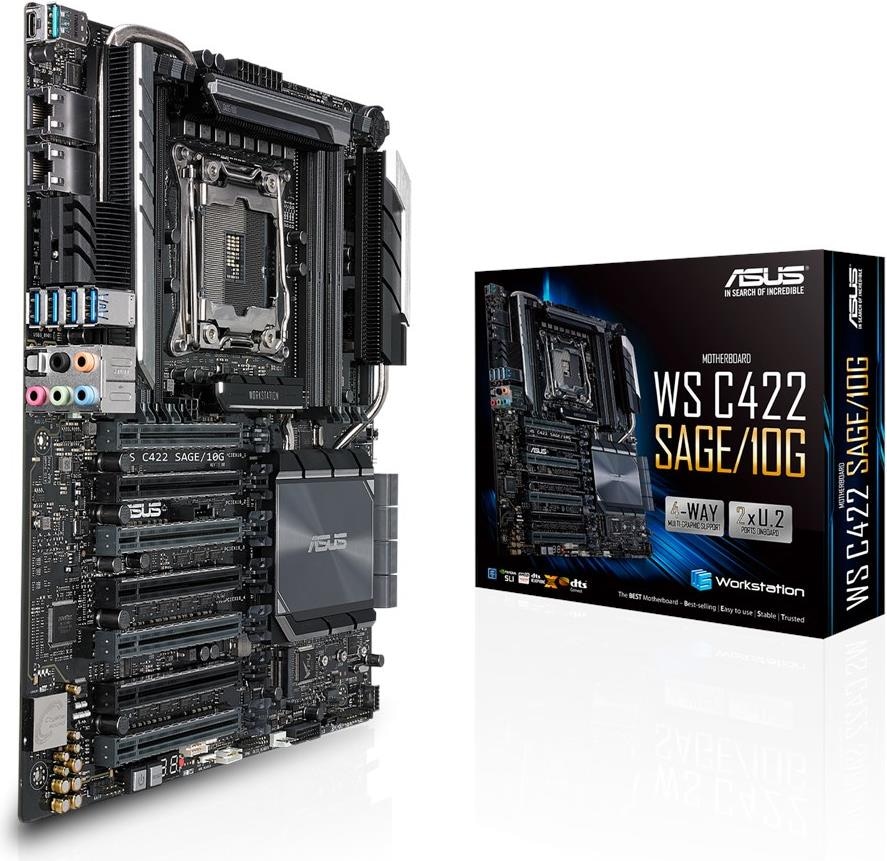

ASUS WS C422 Sage/10G Mainboard Sockel 2066
Spezifikationen:
Formfaktor E-ATX (SSI CEB)
Typ 1x Intel Sockel 2066
Chipsatz Intel C422
RAM 8x DDR4 DIMM, quad PC4-21300L/DDR4-2666, max. N/A (UDIMM), 256GB (RDIMM), 512GB (LRDIMM)
Erweiterungsslots 7x PCIe 3.0 x16 (4x x16, 3x x8), 1x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242), 2x U.2/SFF-8643 (PCIe 3.0 x4)
Anschlüsse extern 1x USB-A 3.1 (ASM3142), 1x USB-C 3.1 (ASM3142), 4x USB-A 3.0, 2x 10GBase-T (Intel X550-AT2), 5x Klinke, 1x Toslink
Anschlüsse intern 1x USB 3.1 (20-Pin Key-A, ASM3142), 2x USB 3.0, 8x SATA 6Gb/s (C422), 1x Thunderbolt-Header 5-Pin, 1x TPM-Header, 1x VROC-Header
Header Kühlung 2x CPU-Lüfter 4-Pin, 3x Lüfter 4-Pin, 1x AIO-Pumpe 4-Pin, 1x Pumpe 4-Pin, 1x EXT_FAN 5-Pin, 1x Thermal-Sensor
Header Beleuchtung 1x RGB-Header 4-Pin (5050), 1x RGB-Header 3-Pin (WS2812B)
Buttons/Switches Power-Button, Reset-Button, MemOK-Button, Clear CMOS, USB BIOS Flashback
Audio 7.1 (Realtek ALC1220), DTS Connect, DTS Headphone:X
RAID-Level 0/1/5/10 (C422)
Multi-GPU NVIDIA 4-Way-SLI (x16/x16, x16/x16/x16, x16/x16/x16/x16), AMD 4-Way-CrossFireX (x16/x16, x16/x16/x16, x16/x16/x16/x16)
Stromanschlüsse 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 6-Pin PCIe
Grafik N/A
Beleuchtung N/A
Besonderheiten Audio+solid capacitors, Diagnostic LED, 2x PLX PEX 8747 Switch
Herstellergarantie drei Jahre (Abwicklung nur über Händler)
